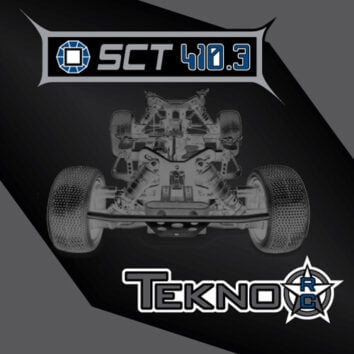

SCT410.3_Cover_Pic

TKR5507 – SCT410.3 1/10th 4WD Competition Short Course Truck

$649.99 $399.99

In stock and ready to ship!

SKU: TKR5507 Category: Tag:

Product Description

Tekno RC is proud to announce the newest revision to our stable of innovative RC vehicles – The SCT410.3 1/10th 4×4 Competition Short Course Truck.  The SCT410.3 is an updated version of the original SCT410 with a slew of new parts and improvements. The SCT410.3 leapfrogs over the 4×4 SC competition in terms of performance, durability, and value.  We have our customers’ best interests at heart so there is a clear path to simply upgrade your original SCT410.  But there’s nothing like a fresh new kit that goes together like butter so pick up the SCT410.3 race kit and unleash it on the competition!

With the SCT410.3, we wanted to improve performance and increase value to the customer without increasing the price or compromising on the great qualities of the original.  To do this, we went through the entire platform and made changes accordingly.

SCT410.3 New Features and Improvements:
Drivetrain Improvements:

  • The diffs feature smoother gears and a new 1-piece composite diff cross pin.
  • The old steel driveshaft has been replaced with a new tapered aluminum design.
  • All of the outdrives and couplers are now lightened.
  • Angled rear gearbox with larger bearings is now standard.
  • Results – dramatically reduced rotating mass, improved acceleration and efficiency.

Suspension Improvements:

  • All new front and rear suspension geometry.
  • New reduced height front and rear shock towers.
  • New V2 hinge pin brace system for incredible adjustability.
  • New front arms feature a flat bottom for increased durability and clearance.
  • New rear arms feature the flat bottom but are also 4mm longer.
  • New rear hubs with reduced offset to match the longer rear arms.
  • New longer rear sway bar.
  • New clamping spring perches with captured shock boots.
  • New droop adjustment screws are now standard.
  • Results – lower CG, increased adjustability, increased stability, and increased consistency.

Weight, Durability, and other Improvements:

  • Lightened black anodized 4mm CNC chassis is now standard.
  • Aluminum pivot balls throughout.
  • Aluminum suspension and spindle bushings are now standard.
  • New lighter camber link rod ends and turnbuckles.
  • LCG Lightened Motor mount is now standard.
  • M5 stub axles are now standard.
  • Split center diff mount makes maintenance a breeze.
  • Lightened metal clamping 12mm wheel hexes are now standard.
  • Revised front bumper increases ground clearance.
  • Larger 6x13x5mm (vs. 6x12x4mm) outer wheel bearings front and rear increases durability.
  • Spindles feature adjustable stops for more precise steering control.
  • Compatibility with existing parts and options.
  • Results – lower CG, improved handling, improved acceleration, and improved durability.

As you can see, the changes are extensive and meticulous.  This provides our customers with the best handling 4×4 SC kit that also happens to be the best value on the market.

Full Feature List:

Chassis:

  • 4mm CNC aluminum black anodized chassis.
  • Super narrow layout – widest point is only 125mm (less than 5”) mudguard-to-mudguard.
  • Class leading front and rear clearance (short chassis overhang) provides better bump handling and jump landing.
  • Adjustable, LCG lightweight body mounting system fits most popular SC bodies (Losi, AE, etc.).
  • Lightweight, extremely durable front and rear bumper system.
  • Integrated battery tray/mud guard, battery is sunken into chassis for a super low CG.
  • Integrated electronics tray/mud guard for easy removal of electronics.
  • Spacious, enclosed, easy access radio box with integrated transponder mount.
  • Adjustable chassis brace system for fine tuning flex with front, center, and rear braces.

Motor Mount:

  • 2-piece CNC aluminum motor mount with precision dual clamping gear mesh adjustment.
  • Split center diff mount for easy maintenance.
  • Lightweight direct-to-diff mount design.
  • Uses standard MOD 1 pinion.

Differentials and Drivetrain:

  • 3 fluid filled adjustable super lightweight diffs.
  • Newly redesigned precision diff gears with innovative 1-piece cross-pin design for increased durability.
  • Less rotating mass = better acceleration.
  • Lightweight straight center driveline for maximum efficiency and reduced wear.
  • CV driveshafts with captured pins on all 4 wheels.
  • Standard 12mm hexes fits most popular SC wheels (SCTE offset).

Shocks:

  • 16mm bore hard anodized shocks – Biggest-in-class!
  • 4mm 7075 aluminum shock towers are standard.
  • Innovative conical piston design (not just tapered) provides varied compression and rebound rates.
  • Fully adjustable long travel suspension geometry maximizes stability and traction while providing superior cornering and on-power steering.
  • CNC aluminum threaded shock bodies.
  • 4mm hardened steel polished shafts.
  • Triple guide design for true consistent shaft action.
  • Options for vented cap, emulsion, or standard shock configurations out of the box.
  • Optional springs and sway bars available.

Suspension and Steering:

  • Bulletproof suspension arms – thicker and stronger than the competition.
  • Adjustable front arm sweep and angle to make the car more aggressive (swept forward), or easier to drive (swept back).
  • ‘Narrow pivot’ steering posts provide ‘0 bump’ geometry with almost 0 steering slop.
  • Adjustable hinge pin braces are standard (toe, anti-squat, kick-up, front arm sweep).
  • 4mm inner, 3.5mm outer hinge pins, polished for smooth action.
  • Adjustable Ackermann and bump-steer (bump in, 0 bump, bump out).
  • Steering system is fully supported on precision ball bearings.  No bushings here.
  • Straight rod ends and lightweight turnbuckles.

Other Features:

  • Exceptional wear characteristics.  Leave the slop and warping to the other guys.
  • Easily adjust anti-squat, rear toe, front arm angle, front arm sweep, roll center, toe, camber, wheelbase, Ackermann, bump steer, suspension geometry out of the box..
  • Extremely easy to work on with minimal screw count.
  • Shares many parts with the EB/NB/ET/NT48 = less parts in your toolbox.
  • All metric hex hardware.
  • 100% Tekno RC Designed and Tested in Southern California.

Specifications:

  • Length:  530mm
  • Wheelbase:  323-335mm
  • Width:  296mm
  • Weight:  ~2850g (6.3lb) out of the box RTR
  • (RTR weight equipped w/ Tekin RX8, Pro4 motor, 300g battery, rx, etc)
  • Diff Ratio:  F/R – 10/40t, Center – 44t
  • Battery tray dimensions: 50x148mm
  • Kit/RTR: Kit

Needed to complete:

  • 2 channel radio/transmitter
  • ESC and Pro4 SCT motor
  • High torque steering servo
  • 2s LiPo battery
  • SC tires, wheels (SCTE offset) & CA glue
  • SC body of your choice, paint for body
  • Hex tools (1.5, 2.0, 2.5mm), nut drivers (5.0, 5.5, 7.0, 8.0mm), pliers, other tools

View All Upgrade Parts

  • TKR5115

    TKR5115 – Spur Gear (44T, hardened steel, lightened)

    $29.99 Add to cart
  • TKR5161s

    TKR5161 – V2 Adjustable Hinge Pin Brace “A” block, 7075 CNC, EB/NB/ET/NT/SCT)

    $24.99 Add to cart
  • TKR5162s

    TKR5162 – V2 Adjustable Hinge Pin Brace “B” block, 7075 CNC, EB/NB/ET/NT/SCT)

    $24.99 Add to cart
  • TKR5163s

    TKR5163 – V2 Adjustable Hinge Pin Brace “C” block, 7075 CNC, EB/NB/ET/NT/SCT)

    $24.99 Add to cart
  • TKR5164s

    TKR5164 – V2 Adjustable Hinge Pin Brace “D” block, 7075 CNC, EB/NB/ET/NT/SCT)

    $24.99 Add to cart
  • TKR5251Bs

    TKR5251B – Aluminum Servo Horn (23T spline, M3 clamp, double hole)

    $15.99 Add to cart
  • TKR5252Bs

    TKR5252B – Aluminum Servo Horn (24T spline, M3 clamp, double hole)

    $15.99 Add to cart
  • TKR5253Bs

    TKR5253B – Aluminum Servo Horn (25T spline, M3 clamp, double hole)

    $15.99 Add to cart
  • TKR6004T_4s

    TKR6004T – Shock Shafts w/ TiNi Coating (for 107mm shocks, steel, 2pcs)

    $19.99 Add to cart
  • TKR6017T_4s

    TKR6017T – Shock Shafts w/ TiNi Coating (for 122mm shocks, steel, 2pcs)

    $19.99 Read More
  • TKR6146_Cs

    TKR6146 – Shock Cartridge Set (CNC, Delrin, EB/NB/ET/NT/SCT)

    $19.99 Add to cart

View All Spare Parts

  • TKR5020s

    TKR5020 – Hinge Pins (inner, front/rear)

    $9.99 Add to cart
  • TKR5237Ks

    TKR5237K – Spur Gear (44t, black, composite)

    $7.99 Add to cart
  • TKR5515_Bs

    TKR5515 – Suspension Arms (rear, SCT410.3/EB48SL)

    $13.99 Add to cart
  • TKR5516_Bs

    TKR5516 – Suspension Arms (front, SCT410.3/EB48SL)

    $13.99 Add to cart
  • TKR5541Bs

    TKR5541B – Spindles (6x13x5mm outer bearing, left/right, SCT410.3/EB48SL)

    $9.99 Add to cart
  • TKR5542s

    TKR5542 – Spindle Carriers (SCT/SL, left and right)

    $11.99 Add to cart
  • TKR5572s

    TKR5572 – Driveshafts (SCT/SL, front/rear, hardened steel, 2pcs)

    $19.99 Add to cart
  • TKR5730s

    TKR5730 – V2 Adjustable Hinge Pin Brace Set (composite, SCT410, EB48SL)

    $9.99 Add to cart
  • TKR2216

    TKR6856 – M6 CV Rebuild Kit (for SCT410.3, SCT410, 6851X, 6852X, 1951X, 2210X, others)

    $6.99 Add to cart

Blank Setup Sheet:

SCT410.3 Blank setup sheet – (editable, savable)

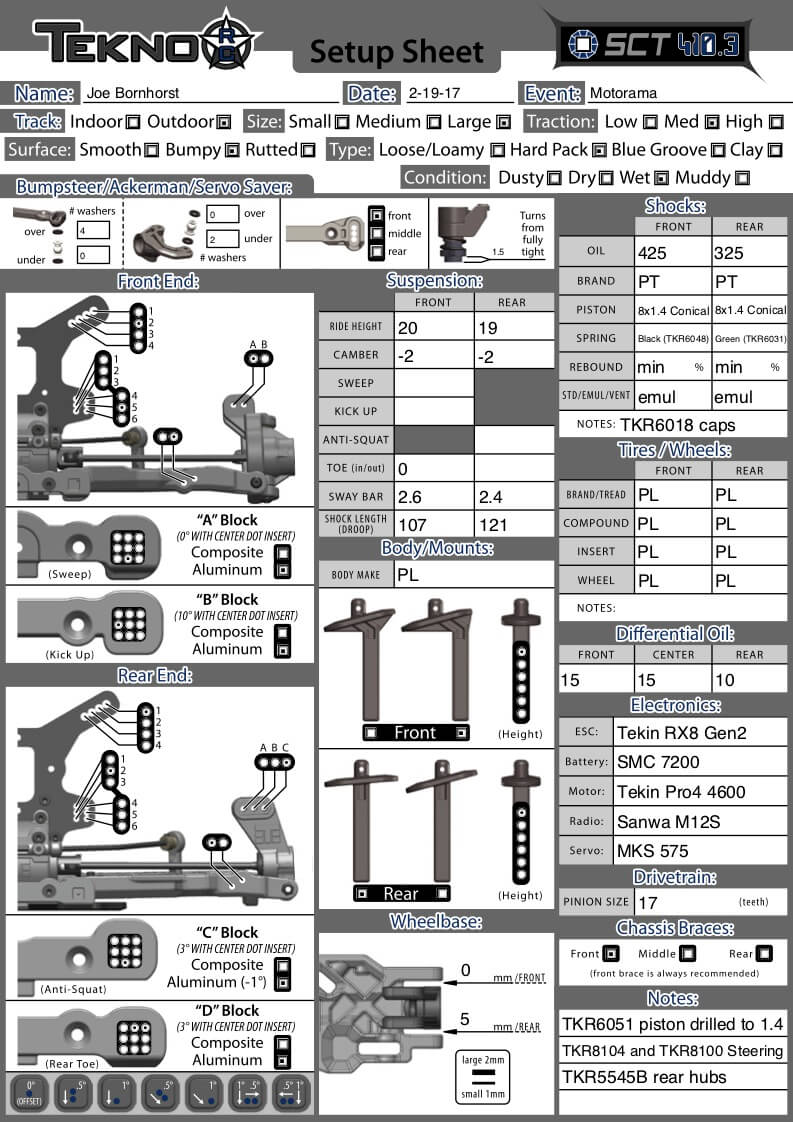

Filled Setup Sheets:

Filename / LinkSize

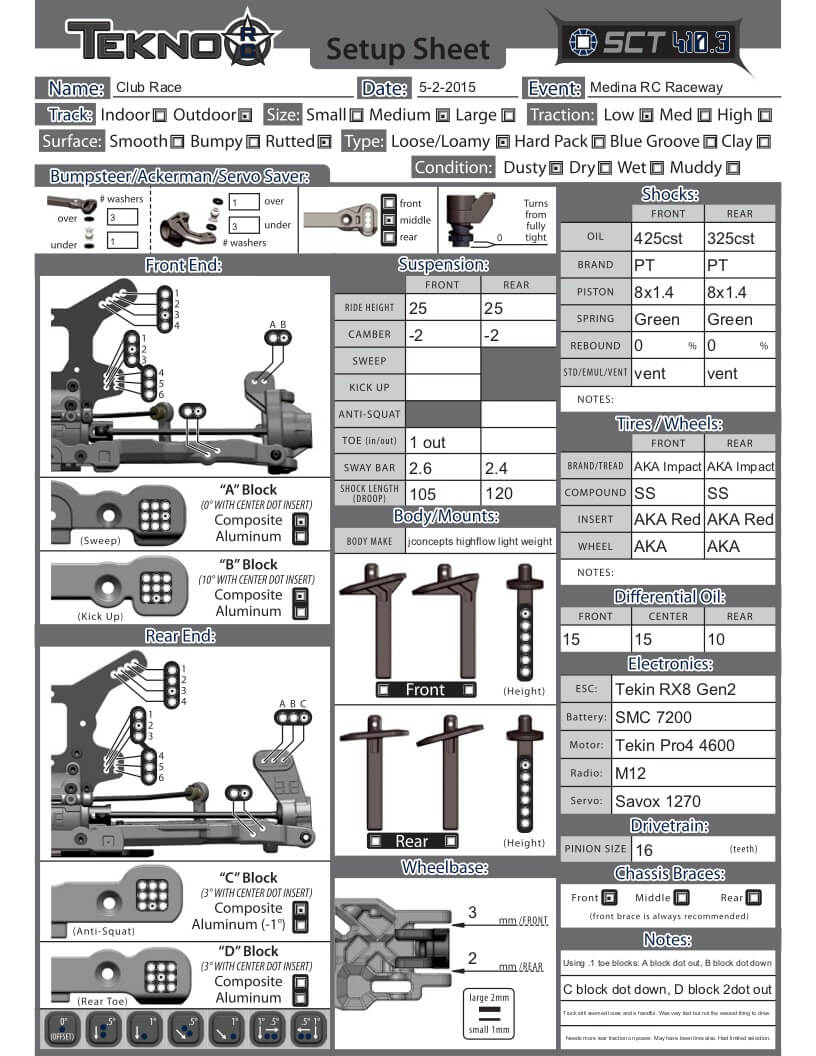

2015_05_02_SCT410.3_Joe_Bornhorst_MedinaClub_MedGrip_Loose.pdf349.46 Kb

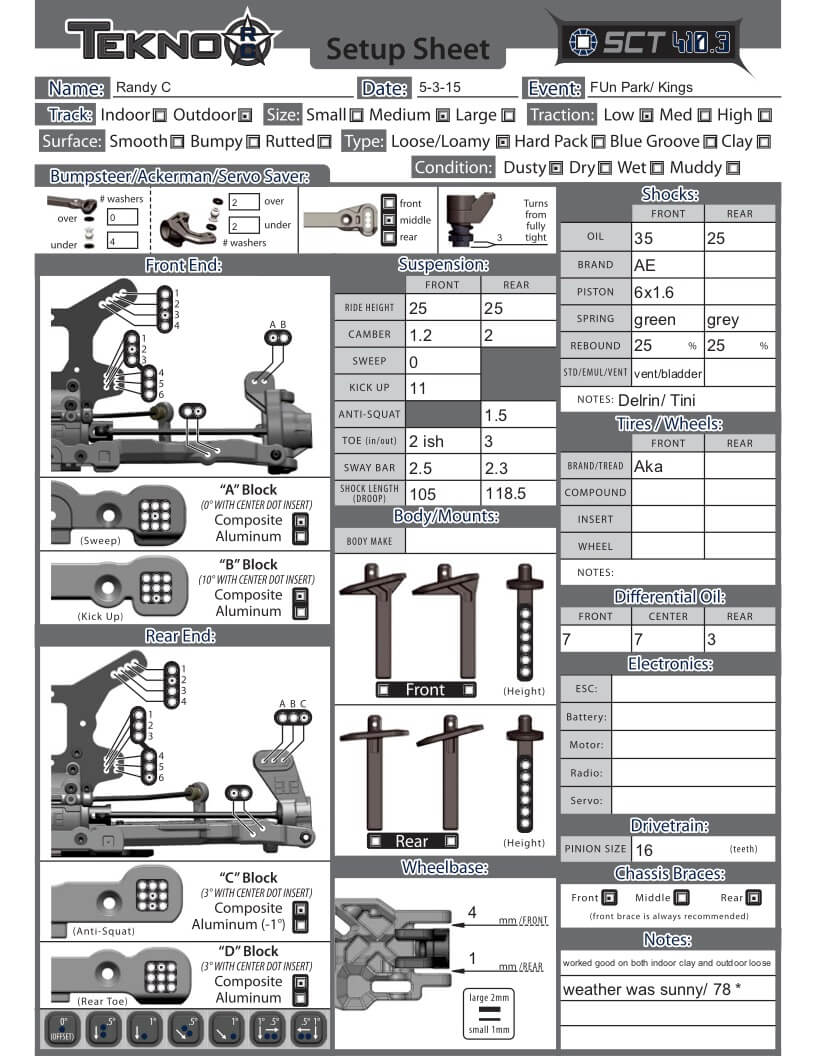

2015_05_03_SCT410.3_RandyCathcart_KingHobbies_ RC_FunPark_Outdoor_looose_lowbite.pdf348.98 Kb
2015_05_30_SCT410.3_RyanScott_AMS6.0_LowBite.pdf349.45 Kb
2015_07_11_SCT410.3_Shaun_Brown_IndoorNatsOutbackRaceway_HighGrip_Clay2.pdf349.31 Kb

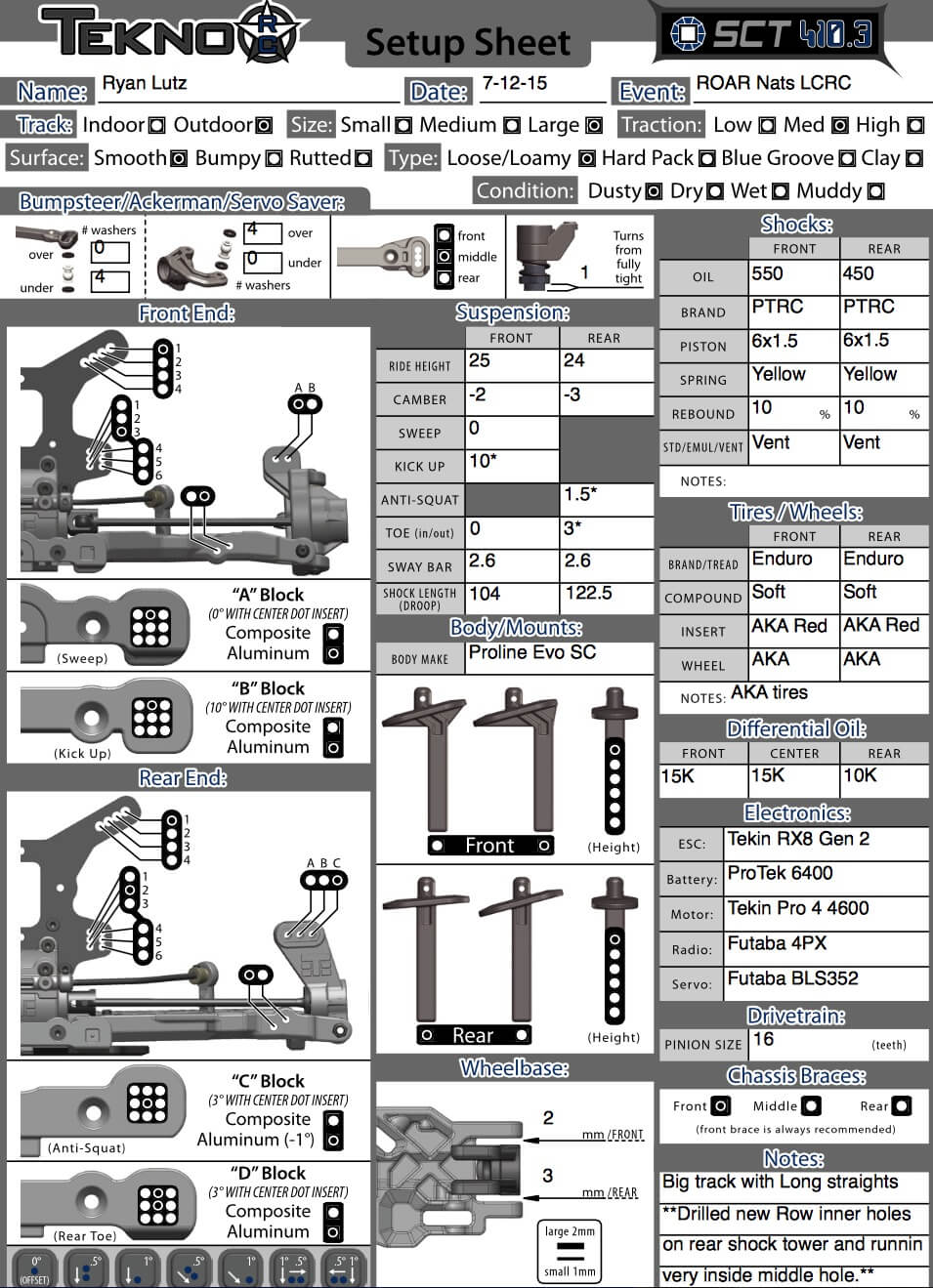

2015_07_12_SCT410.3_Ryan_Lutz_ROAR_Nationals.png611.28 Kb

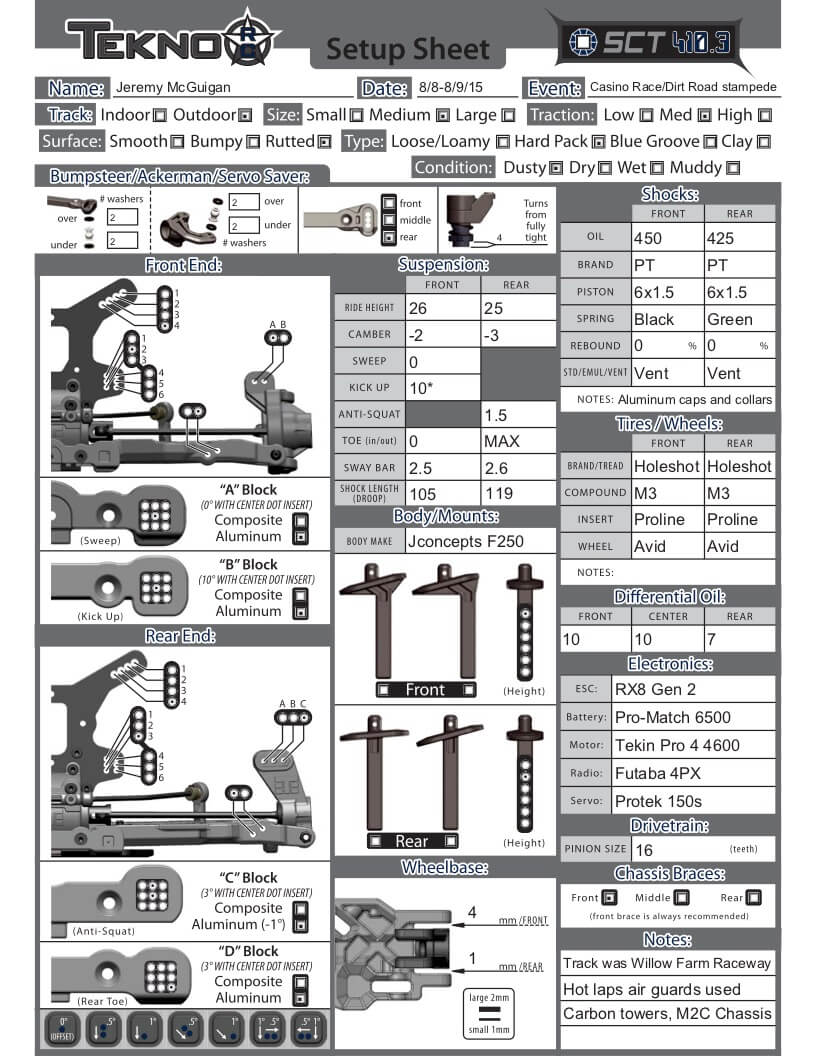

2015_08_08_SCT410.3_Jeremy_McGuigan_DirtRoadStampede_MedGrip_Outdoor_Rutted_Dusty.pdf349.34 Kb

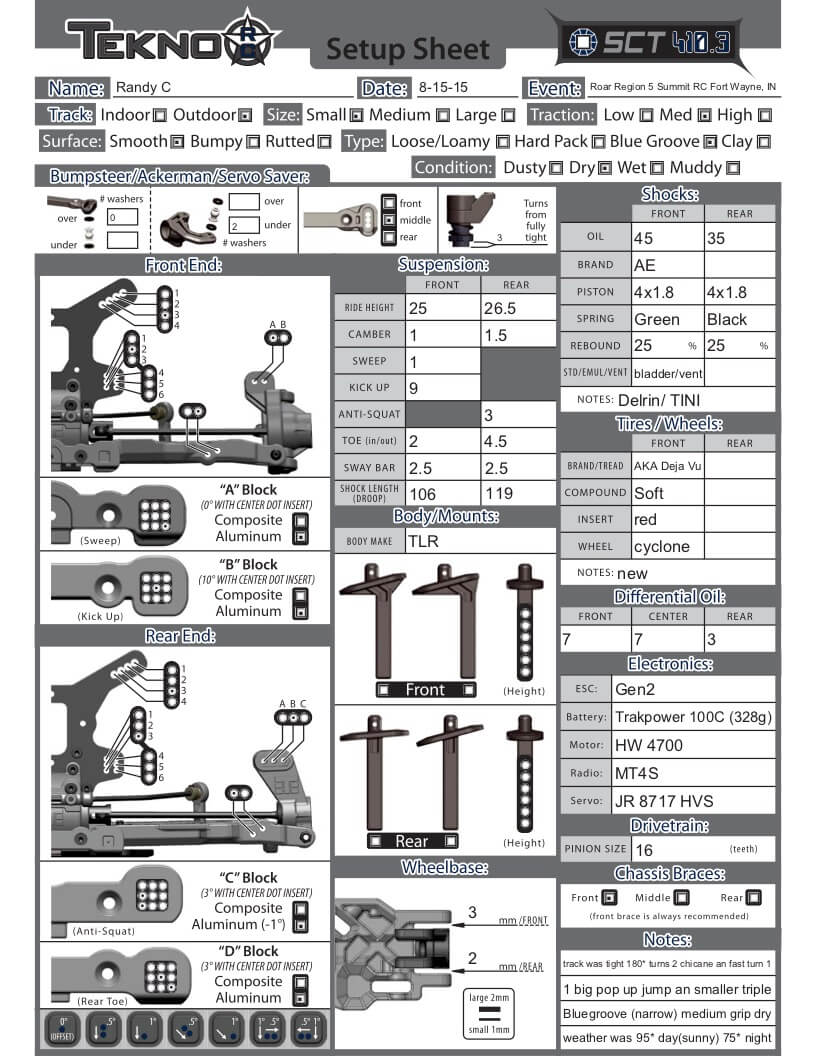

2015_08_15_SCT410.3_RandyCathcart_SummitRC_Regional_Outdoor_Smooth_MediumBite_BlueGroove.pdf349.37 Kb

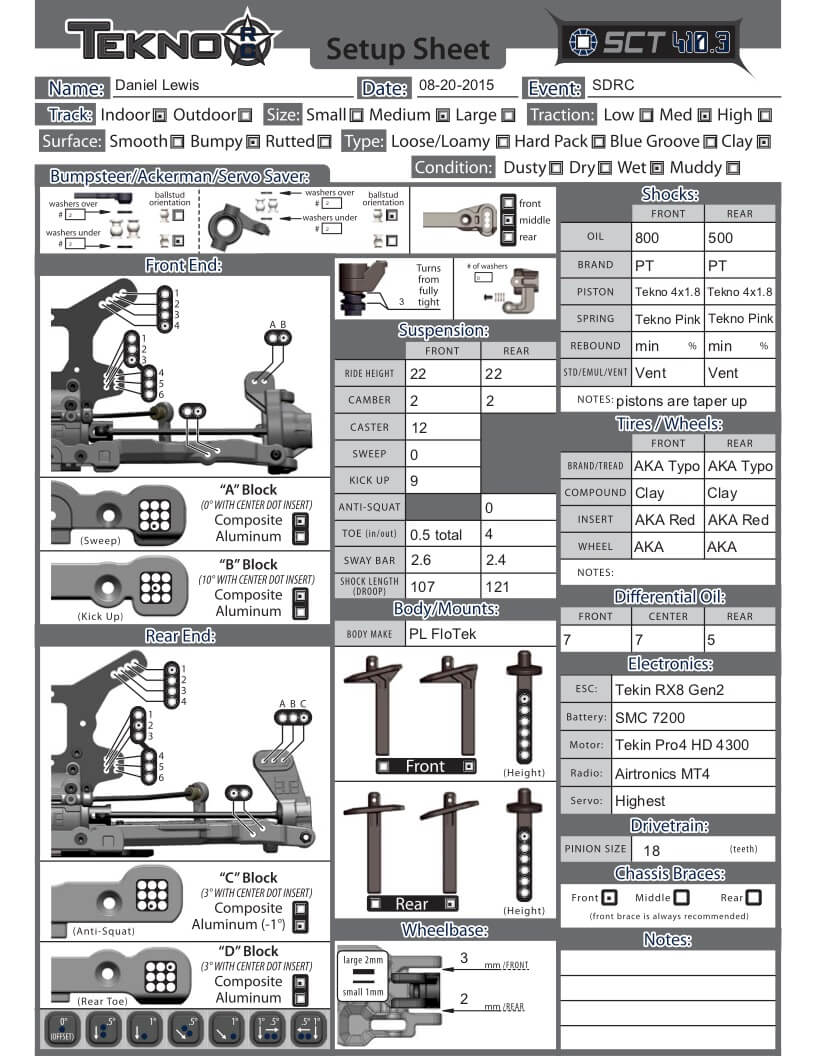

2015_08_20_SCT410.3_Daniel_Lewis_SDRC.pdf360.25 Kb

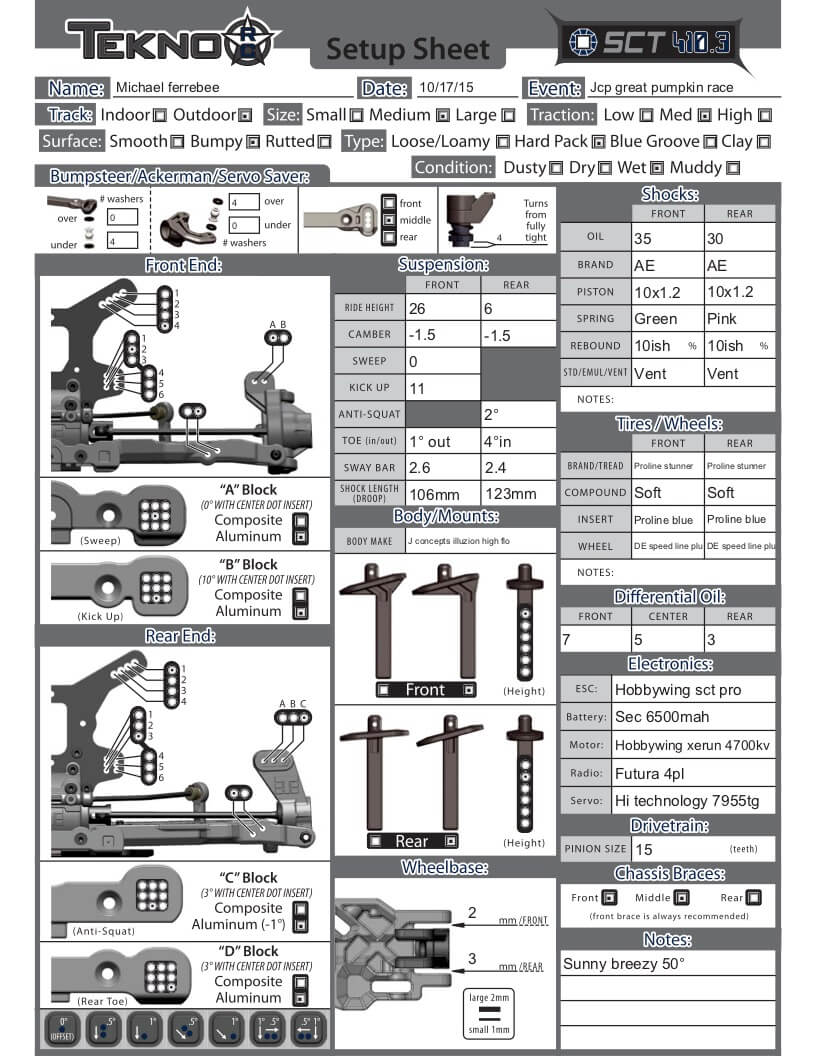

2015_10_17_sct410.3_michael_ferrebee_jcp south_wet med bite.pdf349.3 Kb

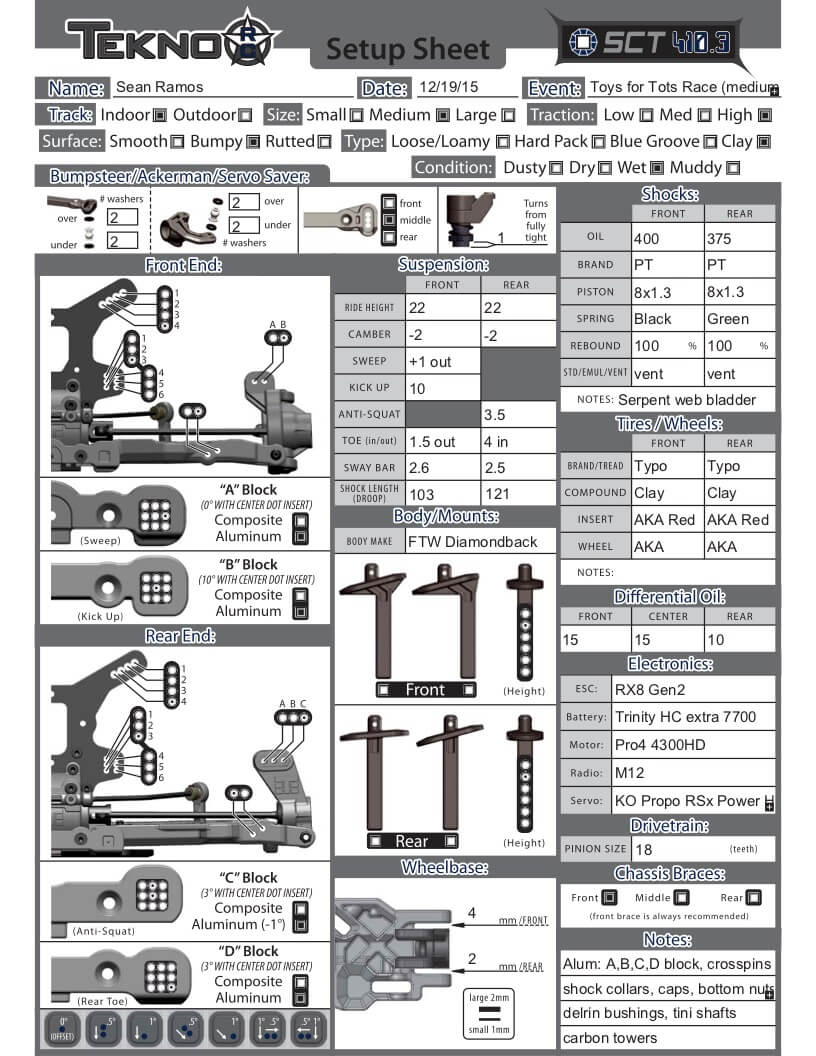

2015_12_19_SCT410.3_Sean_Ramos_Toys for Tots Race (medium_high bite)_Indoor_High bite Bumpy_Wet.pdf352.15 Kb

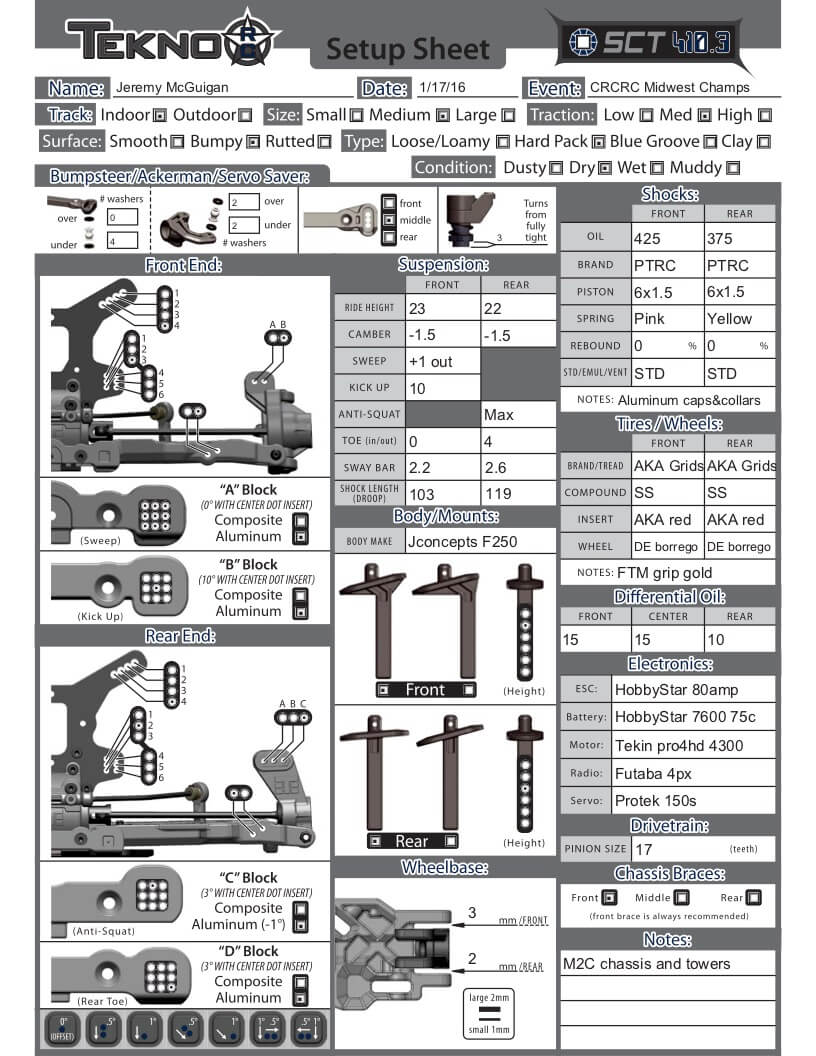

2016_01_17_SCT410.3_Jeremy_McGuigan_CRCRCMidwestChamps_MediumBite_hardpacked_rutts_Dry.pdf349.98 Kb
2016_01_29_SCT410.3_Jeremy_McGuigan_Midwest Championship_dry_hard pack_bumpy.pdf349.7 Kb

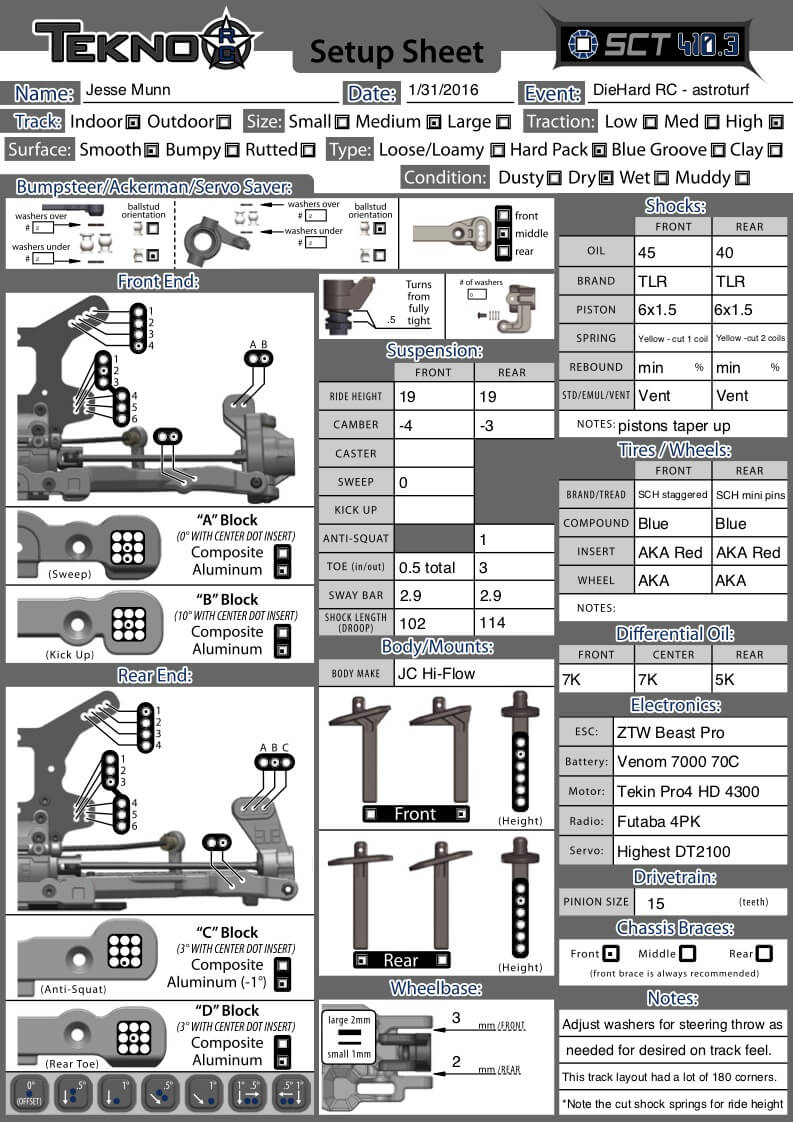

2016_01_31_SCT410.3_Jesse_Munn_DieHardRC_astroturf.pdf735.71 Kb

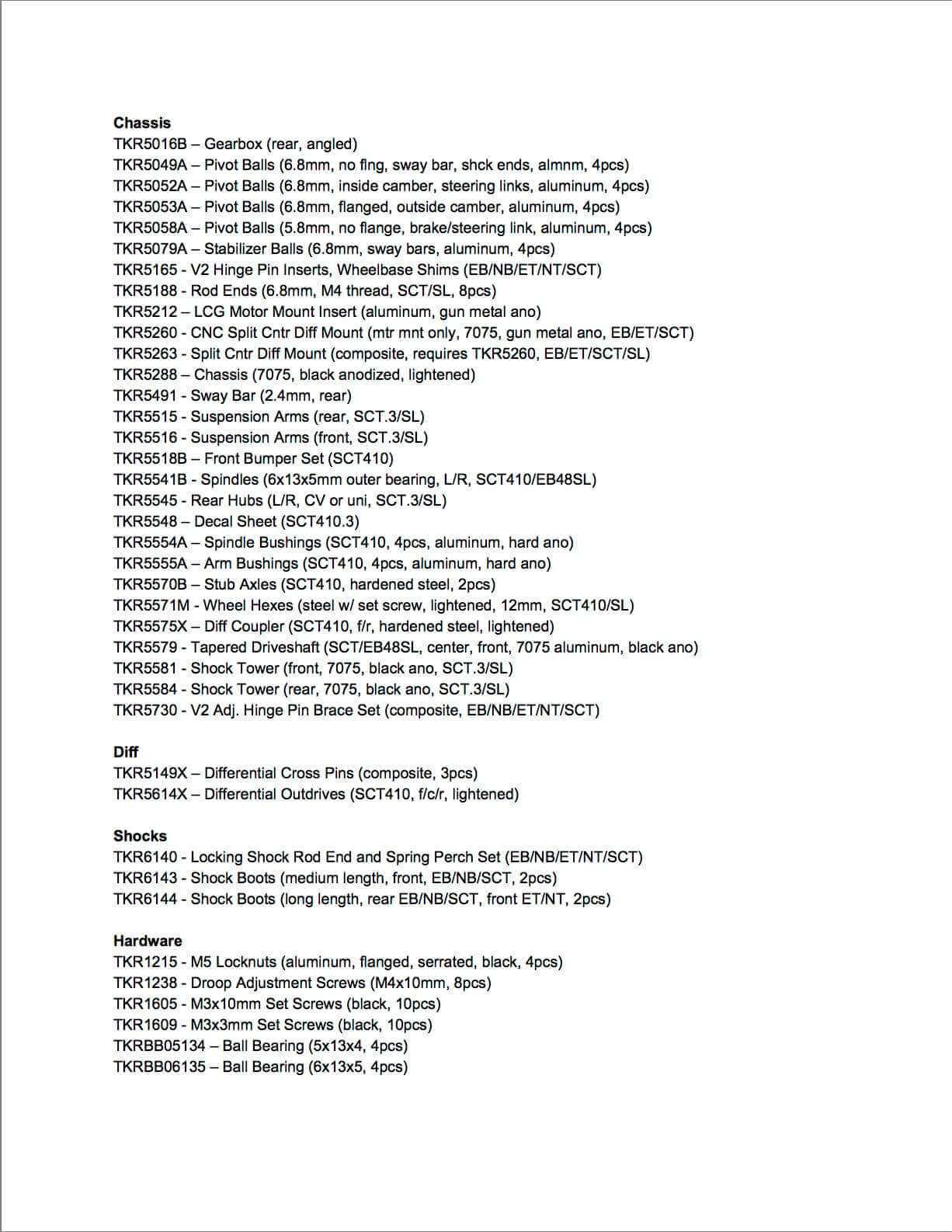

SCT410.3 New Parts Listing (Compared to original SCT410)




SCT401.3 Bearing Chart

Shipping Specs.

Weight 6 lbs
Dimensions 15.6 x 9.25 x 5.6 in
