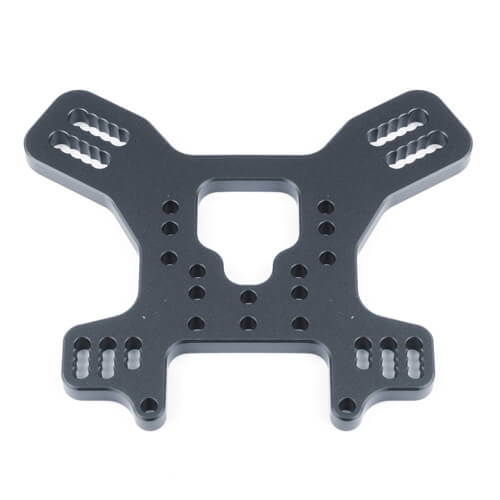

TKR9269B – Shock Tower (rear, adj. wing/shock, 7075 CNC, GM ano, EB/NB48 2.0)

Product Description

TKR9269B – Shock Tower (rear, adj. wing/shock, 7075 CNC, GM ano, EB/NB48 2.0)

Improve the handling of your EB/NB48 2.0 with this new 7075 aluminum, CNC machined shock tower! The shock and camber link mounting locations on this rear tower have been fine-tuned, making it easier to dial your vehicle into the track conditions. An extra column of inner camber link positions was added to allow running a longer rear link for added rear-end stability. We also added an extra row of shock positions allowing the use of either short or long rear shocks. Two additional, higher wing mount positions have also been added to increase high-speed downforce and mid-corner rear grip.

This tower is gun metal anodized and intended to be used on the EB48 2.0 and NB48 2.0 vehicles. It is a direct replacement for TKR9269 and TKR9269S and does not require any additional hardware or additional parts.

How to Use the Upper Shock Mount Positions

The upper shock mount holes on the new tower can be used in two ways. Truggy rear bodies (TKR6060) and Truggy rear shafts (TKR6061, TKR6061T) are the favored method. Without unscrewing the shock ends, it allows for full droop (up to 130mm). More importantly, it prevents the piston from resting on the shock body’s bottom during full droop (130mm).

Alternatively, you can use Truggy rear shock bodies (TKR6060) and the same shock shafts that came with the kit (TKR6017, TKR6017T).

Note

A slight modification to the body and body mount will be required. As indicated in the image below, the rear of the body mount will need to be removed and the body will need to be trimmed in the back for clearance.

Vehicle Compatibility

• TKR9269B - Shock Tower (rear, adj. wing/shock, 7075 CNC, GM ano, EB/NB48 2.0) is included with the EB48 2.1 and NB48 2.1 kits and can be used as a replacement part for those vehicles.
• This can be used with the EB48 2.0 and NB48 2.0 vehicles and should be a direct replacement for the stock part or used as a new feature. Please use the instruction manual for the kit(s) listed to verify compatibility and no additional items are necessary before purchasing.
