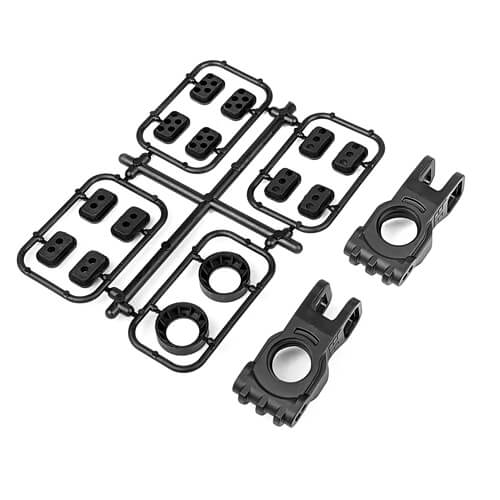

TKR9054B – Rear Hubs and Bearing Spacers (+/-2mm, adj roll center, L/R, EB/NB48 2.1)

Product Description

TKR9054B – Rear Hubs and Bearing Spacers (+/-2mm, adj roll center, L/R, EB/NB48 2.1)

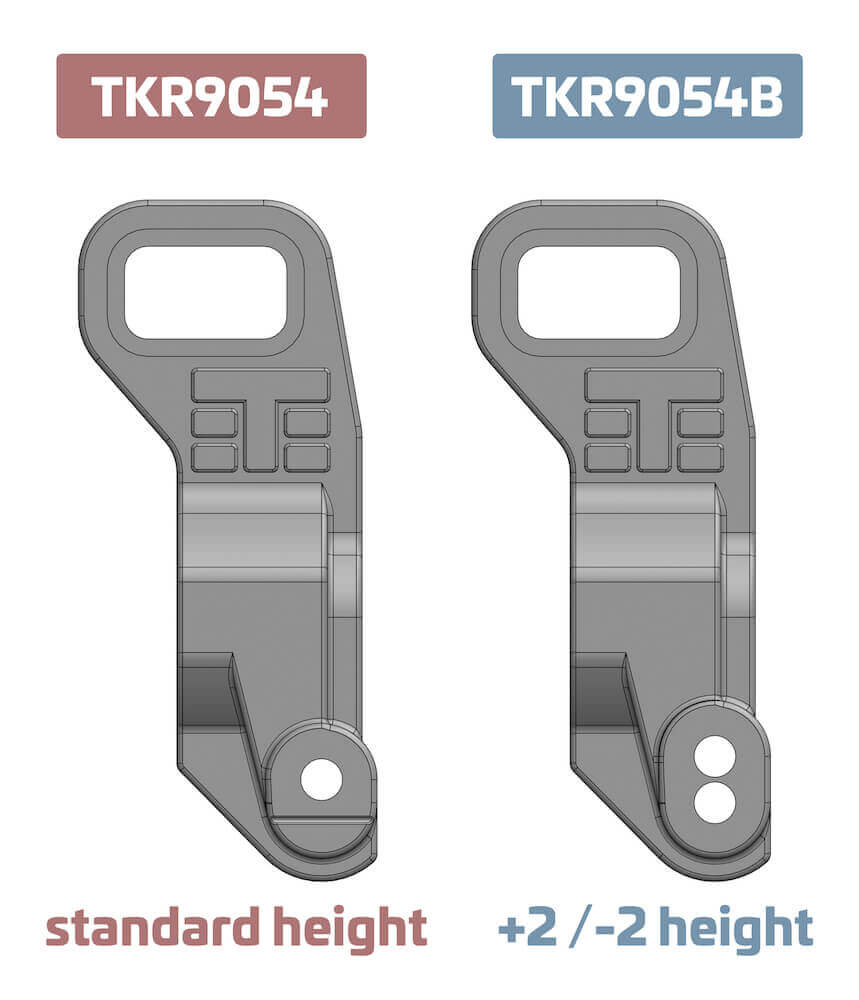

Improve the handling of your Tekno RC EB/NB48 2.X vehicles with these new +/-2mm rear hubs! Our drivers discovered that the -2mm position (closest hole to the bearing) increased rear end grip, stability, and predictability on all track conditions during testing. Although these hubs include an optional high roll center setting (hinge pin further away from the bearing), it was rarely used during our testing.

Compatibility

These new hubs are only compatible with Tekno RC’s 2.X buggies and should not be used with ET or NT truggies.  TKR9284B rear arms are required.

Recommended to use with:

TKR9017B – Sway Bar and Bulkhead Acc (for -2mm bulkheads)
TKR9416B – Gearbox (-2mm, F/R, EB/NB/ET/NT48 2.x)
TKR9284B – Suspension Arms (revised, rear, EB/NB48 2.1)

Setups:

Please see the following setups using this part for other recommendations:

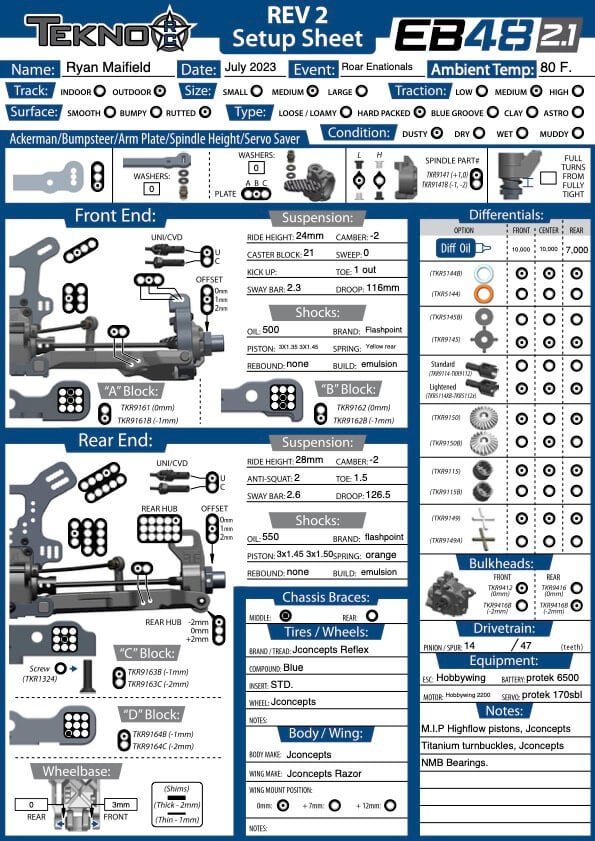

2023_07_23 – EB48 2.1 – Ryan Maifield – ROAR 1-8th Electric Nationals.jpg

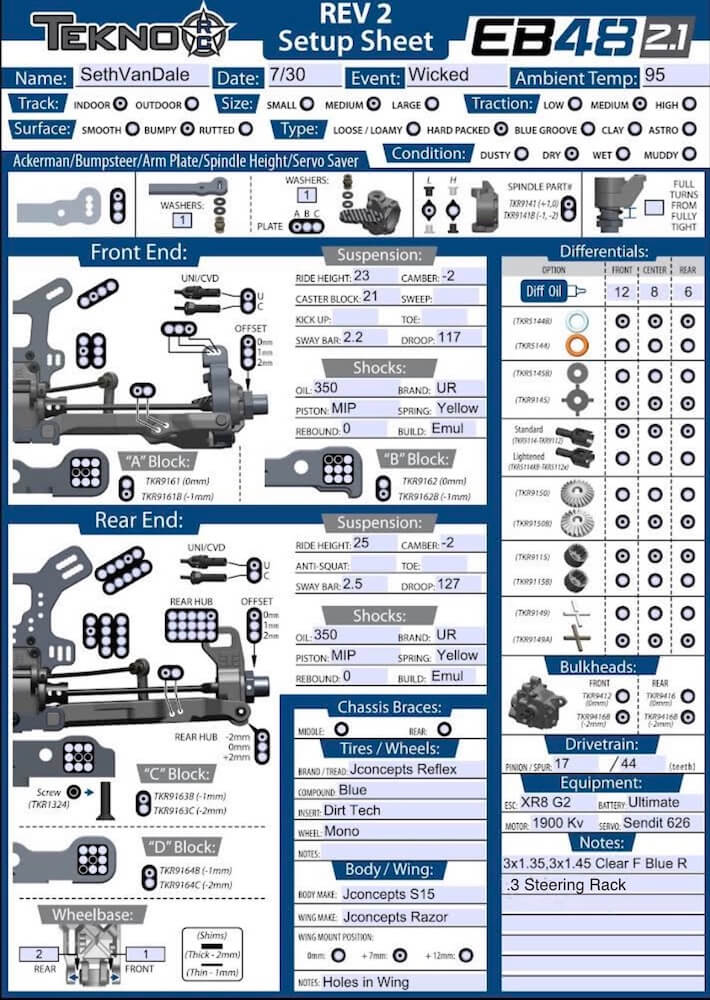

2023_07_30 – EB48 2.1 – Seth VanDalen – Wicked Weekend.jpeg

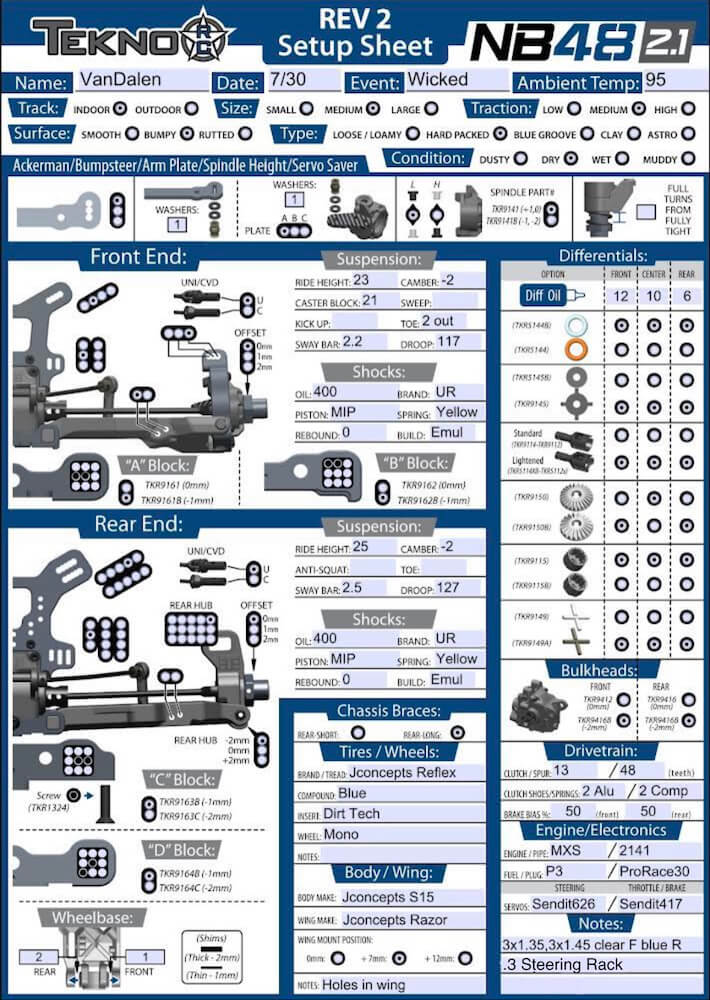

2023_07_30 – NB48 2.1 – Seth VanDalen – Wicked Weekend.jpeg

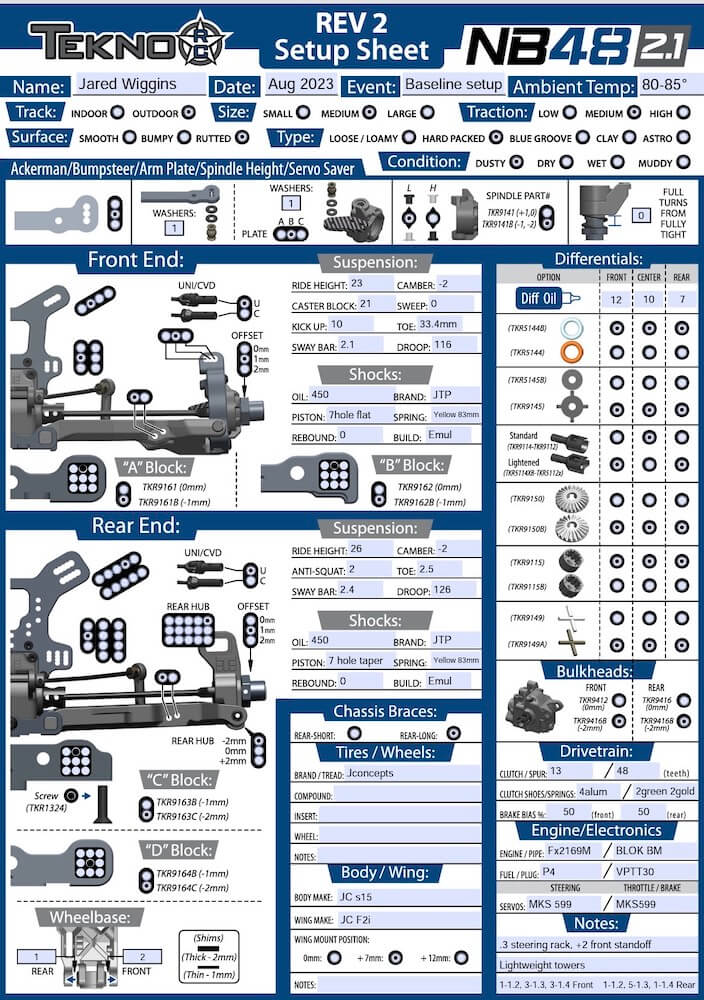

2023_07_30 – NB48 2.1 – Jared Wiggins – Base Setup.jpeg

Vehicle Compatibility

• TKR9054B - Rear Hubs and Bearing Spacers (+/-2mm, adj roll center, L/R, EB/NB48 2.1) is not included with any kit.
• This can be used with the EB48 2.1 and NB48 2.1 vehicles and should be a direct replacement for the stock part or used as a new feature. Please use the instruction manual for the kit(s) listed to verify compatibility and no additional items are necessary before purchasing.
