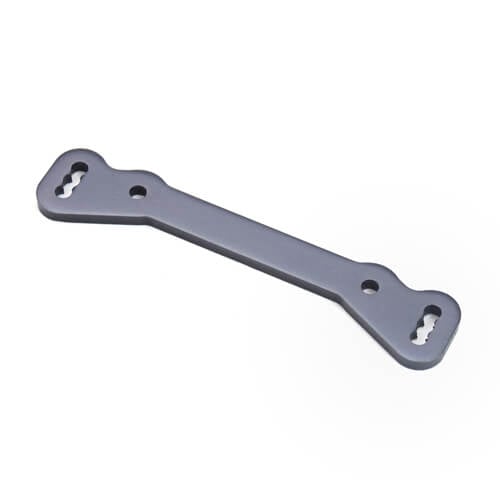

TKR8100 – Ackermann Plate (7075, gun metal anodized, EB/NB48.4)

Product Description

TKR8100 – Ackermann Plate (7075, gun metal anodized, EB/NB48.4)

This product has been discontinued and replaced by the 8100B

Revised Ackermann plate with improved handling and bump steer characteristics.  Adjusting the angle of the inner and outer wheel throughout the steering action has resulted in a more progressive steering response, improved consistency, increased high-speed sweeper stability and better rough track handling. This Ackermann plate replaces TKR5100 and is intended for use on all track sizes and conditions.

Requirements

TKR8104 Bell Cranks and also TKR1403 M3x10 Button Head Screws.

Modifications

In order to obtain positive static toe, both left and right steering turnbuckles for the EB/NB48 (TKR5050) and SCT410/EB48SL (TKR5550) will need to be shortened by approx 6mm (3mm on each side of both turnbuckles).


Vehicle Compatibility

• TKR8100 - Ackermann Plate (7075, gun metal anodized, EB/NB48.4) is included with the EB48.4, MT410 and NB48.4 kits and can be used as a replacement part for those vehicles.
• This can be used with the EB48.2, EB48.3, EB48SL, ET48, ET48.3, NB48, NB48.3, NT48, NT48.3, SCT410 and SCT410.3 vehicles and should be a direct replacement for the stock part or used as a new feature. Please use the instruction manual for the kit(s) listed to verify compatibility and no additional items are necessary before purchasing.
